Working Principle of Activated Carbon Adsorber
After collection, organic exhaust gases enter the activated carbon adsorber under negative pressure generated by the blower. Activated carbon adsorption utilizes the principle of attraction inherent in the material's porous structure. Due to the presence of unbalanced saturated molecular forces or chemical bond forces on the solid surface, when this surface contacts gas molecules, it attracts them, concentrating and retaining them on the solid surface—a phenomenon known as adsorption. The activated carbon adsorption method employed in this process utilizes this property of solid surfaces. When waste gas contacts the high-surface-area, porous activated carbon, pollutants in the waste gas are adsorbed onto the solid surface of the activated carbon. This separates them from the gas mixture, achieving purification.

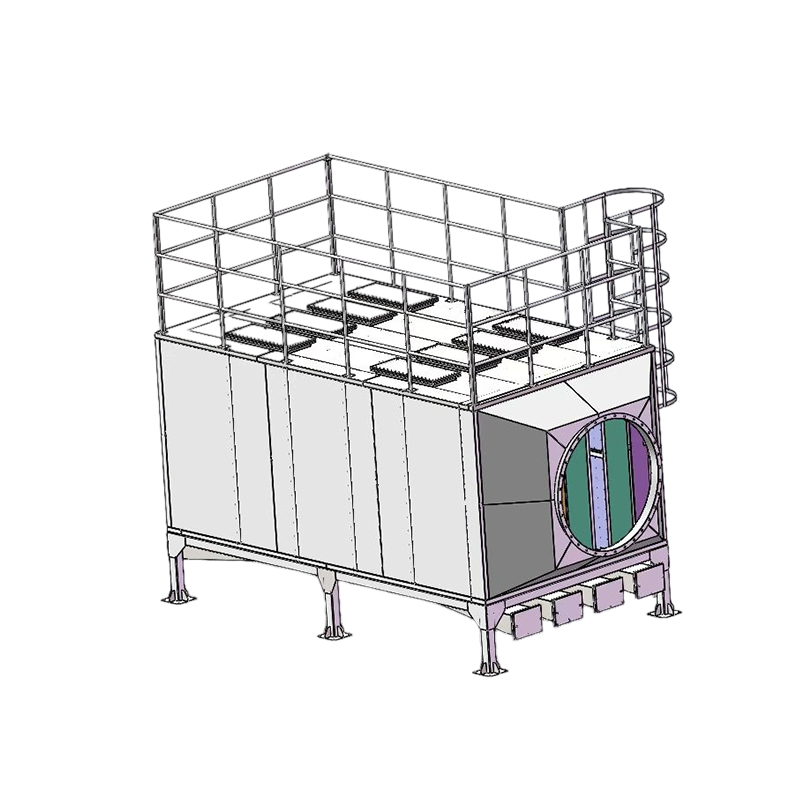

Activated Carbon Adsorber Structure
Activated carbon adsorption equipment primarily consists of an activated carbon adsorber (perforated plate, activated carbon adsorption layer), centrifugal fan, electrical control box, air duct, exhaust stack, and other components.
About Activated Carbon
Activated carbon is a type of microcrystalline carbon derived from carbon-containing materials. It appears black externally, possesses a highly developed internal pore structure, exhibits a large specific surface area, and demonstrates strong adsorption capacity. It serves as a commonly used adsorbent and catalyst.
Working Principle: Activated carbon utilizes its porous physical properties and the principle of intermolecular attraction. It relies on flowing air as a medium to adsorb harmful gases present in water and air.
Types of activated carbon
The raw materials for making activated carbon include apricot kernels, coconut kernels, walnut shells, coal, coal tar, and charcoal. In terms of application form, it is mainly divided into honeycomb carbon, powdered activated carbon, granular activated carbon, and fibrous activated carbon.
 |
 |
 |
 |
| Honeycomb charcoal | Powdered Carbon | Granular Carbon | Fibrous Carbon |
Activated carbon adsorption box selection
Activated carbon adsorption box technical parameter table:
| model | Air volume range | Device size | Wind area(m²) | Wind speed range | Equipment material |
| HXT-2000 | 2000 | 1800*800*1000 | 1.2 | 0.5m/S | PP/201/304/Q235 |
| HXT-5000 | 5000 | 2200*1200*1200 | 2.78 | 0.5m/S | PP/201/304/Q235 |
| HXT-8000 | 8000 | 2200*1000*2000 | 4.45 | 0.5m/S | PP/201/304/Q235 |
| HXT-10000 | 10000 | 2400*1200*2000 | 5.56 | 0.5m/S | PP/201/304/Q235 |
| HXT-12000 | 12000 | 2600*1200*2000 | 6.67 | 0.5m/S | PP/201/304/Q235 |
| HXT-15000 | 15000 | 3000*1200*2000 | 8.34 | 0.5m/S | PP/201/304/Q235 |
| HXT-18000 | 18000 | 3000*1500*2000 | 10 | 0.5m/S | PP/201/304/Q235 |
| HXT-20000 | 20000 | 3200*1500*2000 | 11.2 | 0.5m/S | PP/201/304/Q235 |
| HXT-25000 | 25000 | 3600*1500*2000 | 13.9 | 0.5m/S | PP/201/304/Q235 |
| HXT-30000 | 30000 | 3500*2000*2000 | 16.67 | 0.5m/S | PP/201/304/Q235 |
