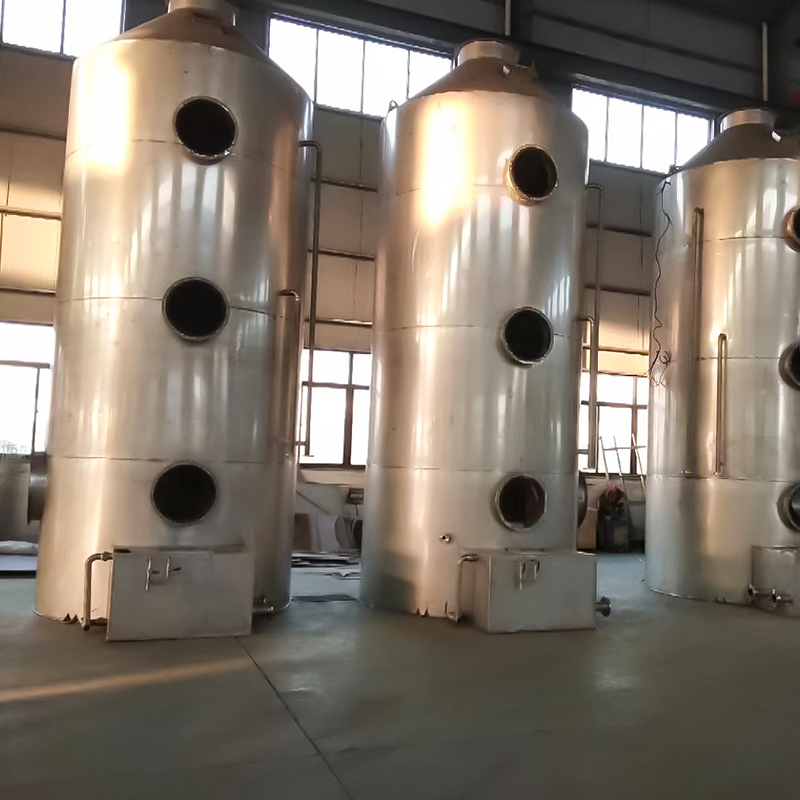

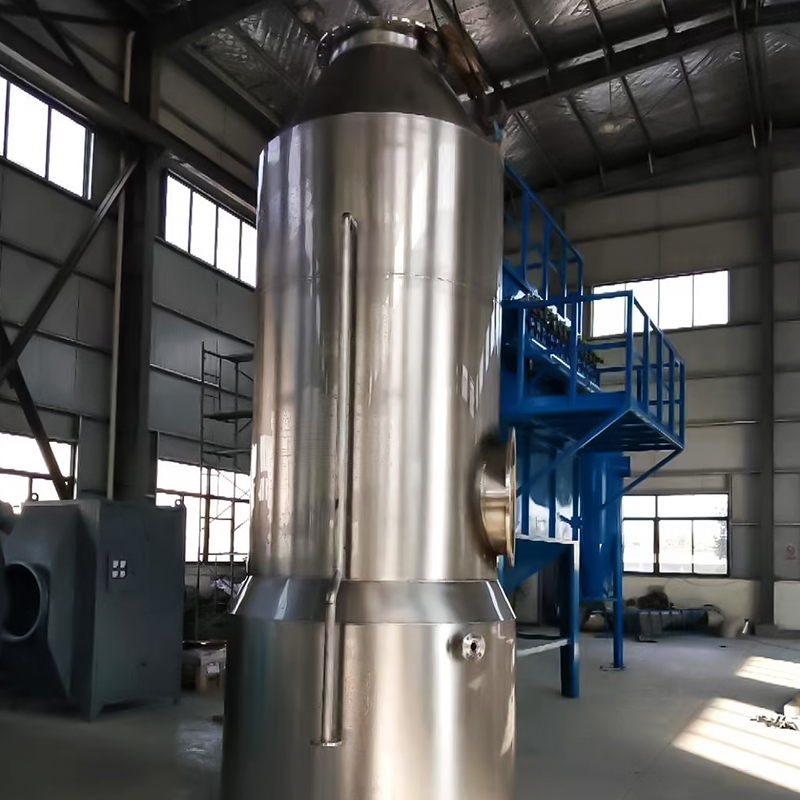

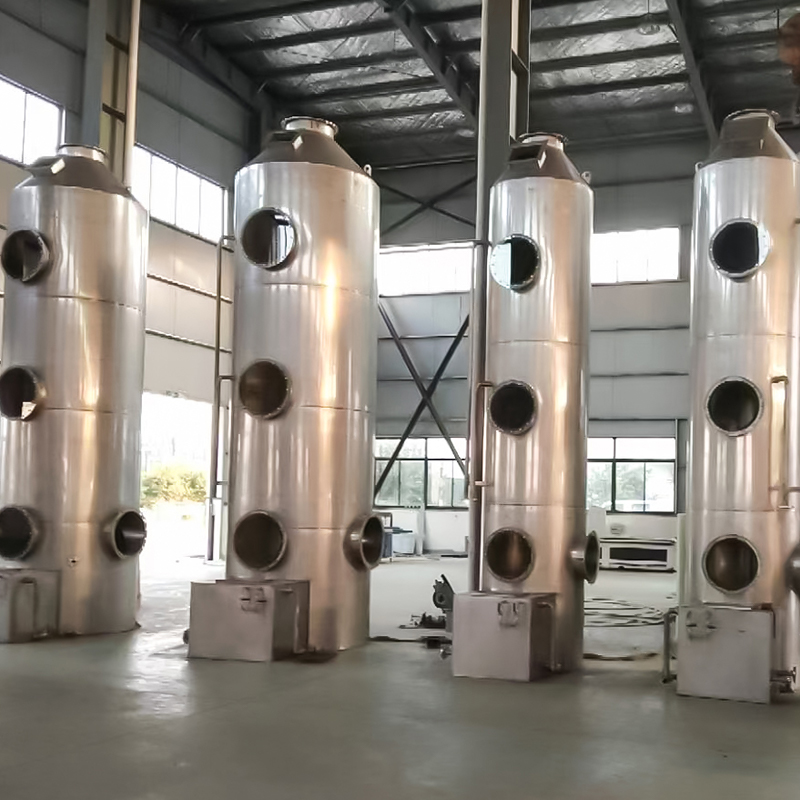

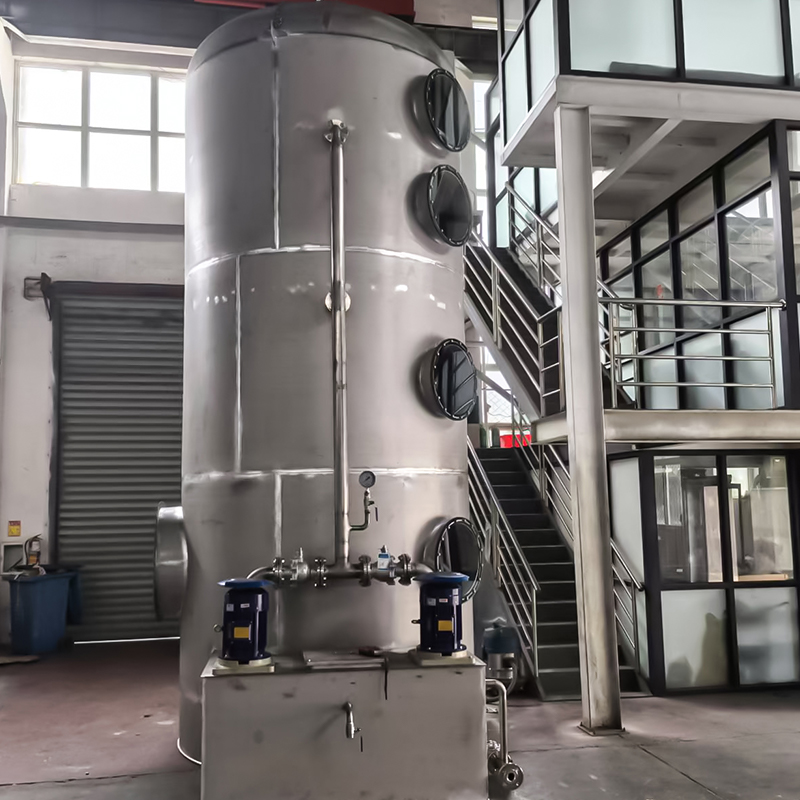

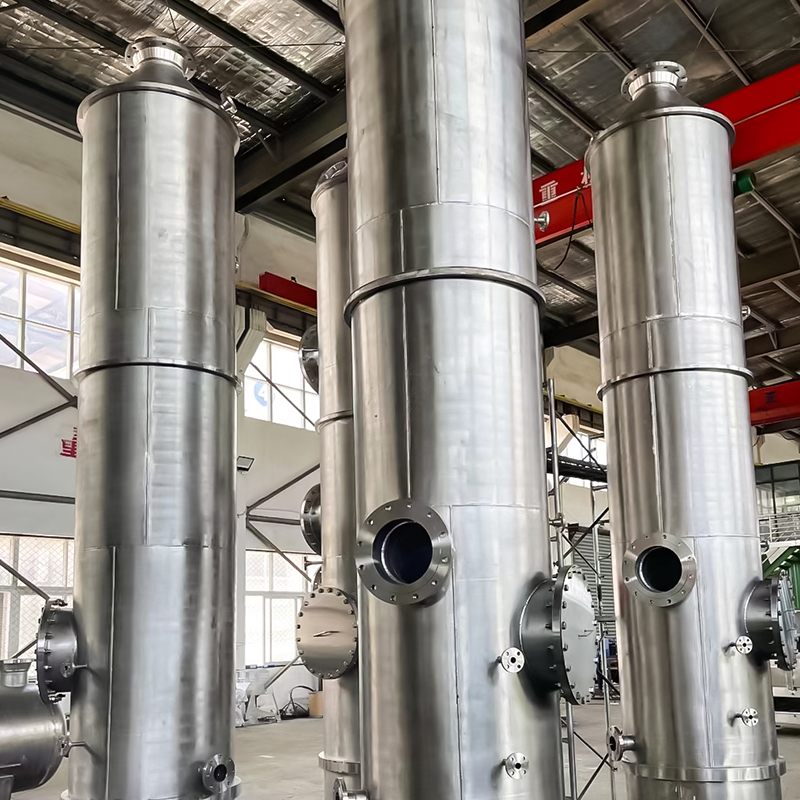

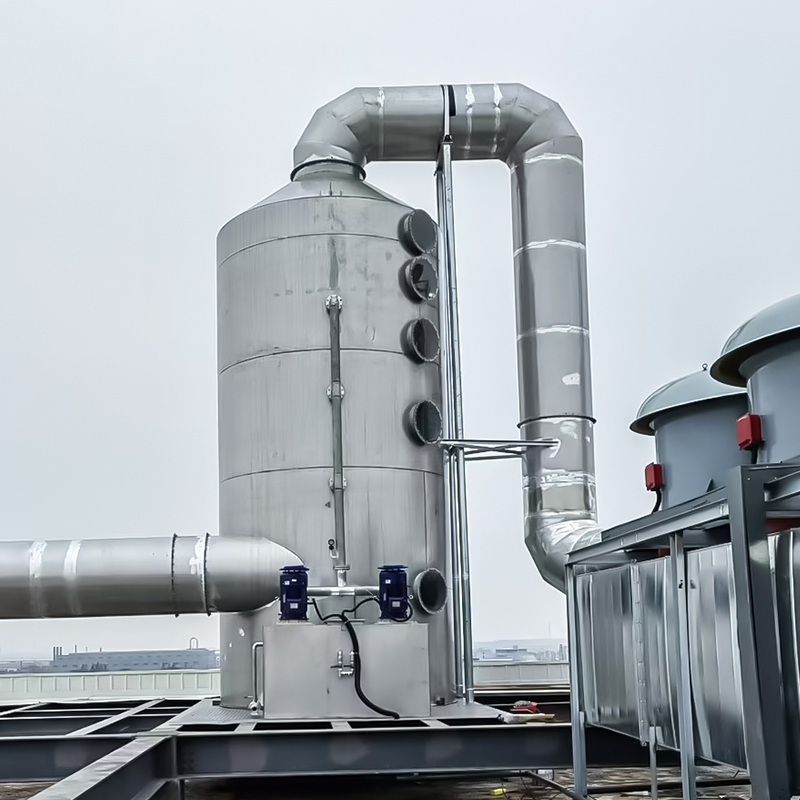

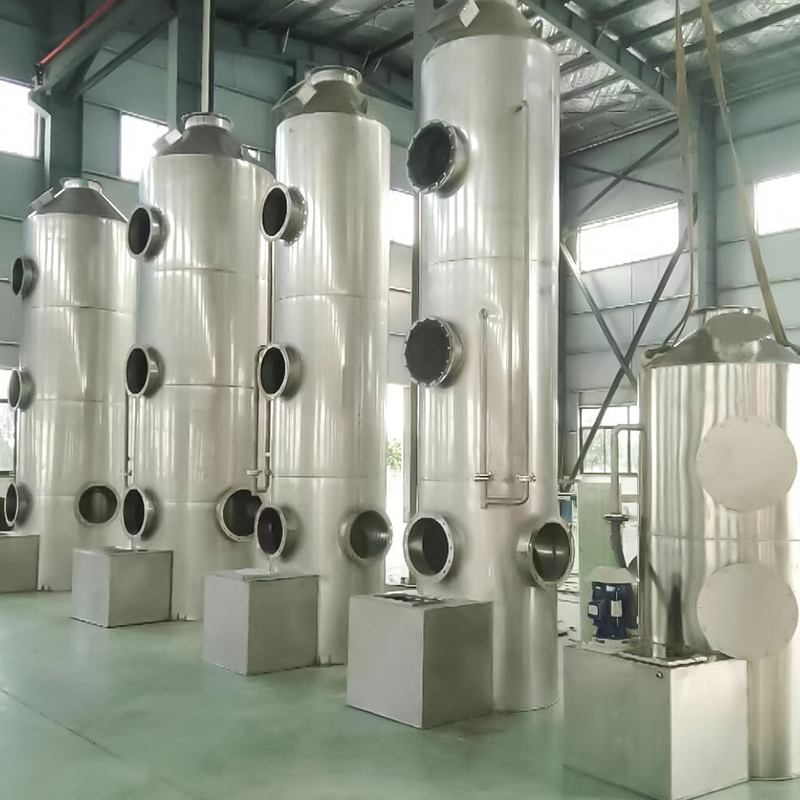

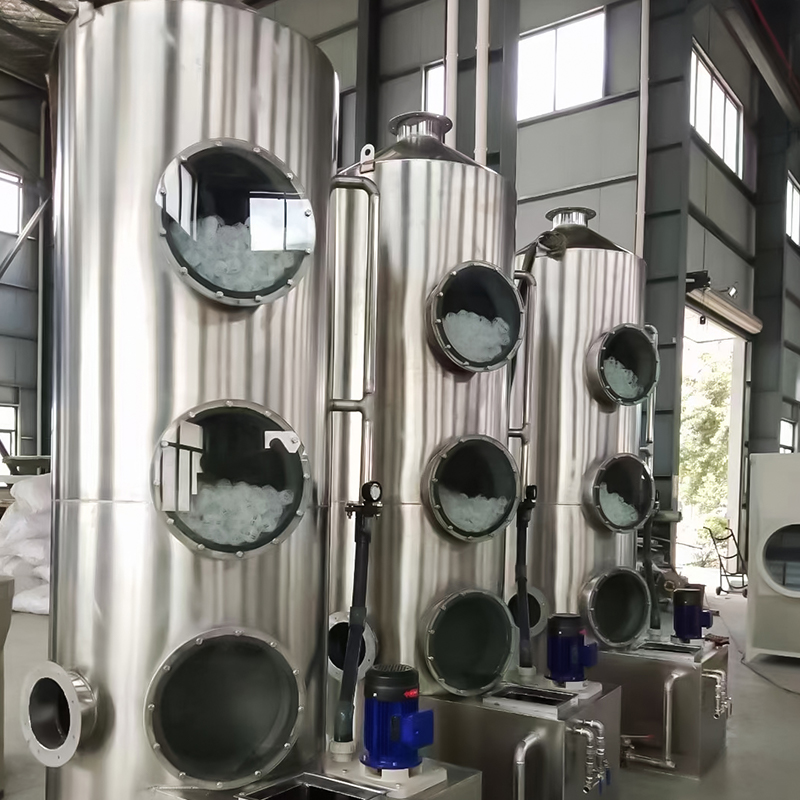

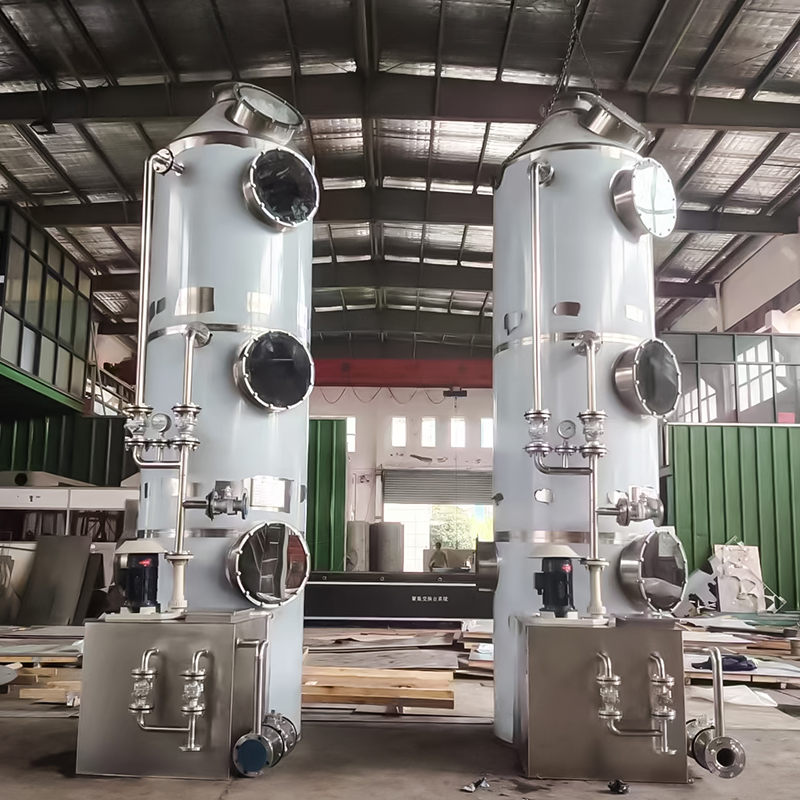

304 stainless steel spray tower

The 304 stainless steel spray tower is an exhaust gas purification device constructed of 304 stainless steel. Its operating principle is based on a gas-liquid contact reaction. Due to the material's properties, it offers specific advantages in terms of usability and timeframe. The details are as follows:

I. Working Principle
Like other spray towers, the core logic is the same: exhaust gas purification is achieved through gas-liquid contact. The process is as follows:
1. Exhaust Gas Intake: Driven by a fan, pollutant-laden exhaust gas enters the tower from the bottom and flows upward along the tower's internal channels.
2. Absorbent Liquid Spray: The spray system at the top of the tower pressurizes the absorbent liquid (such as an acid or alkali solution, clean water, or a specialized reagent). The pressurized absorbent liquid (such as an acid or alkali solution, clean water, or a specialized reagent) is atomized into fine droplets through a nozzle and sprayed downward, forming a dense liquid curtain.
3. Purification Reaction: The rising exhaust gas comes into full contact with the descending droplets, removing pollutants through physical adsorption (dust capture), chemical neutralization (reaction of the acid or alkali gas with the corresponding solution), or dissolution absorption (soluble gases).
4. Gas-Liquid Separation: The purified gas passes through a mist eliminator at the top of the tower to remove any entrained liquid droplets and is ultimately discharged from the top of the tower in a standard manner.
5. Wastewater Treatment: The wastewater that has absorbed pollutants is collected in a sump at the bottom of the tower and can be recycled (to replenish reagents) or discharged after treatment.

II. Applicable Environment and Time Characteristics
1. Environmental Adaptability:
- Temperature Resistance: 304 stainless steel can withstand high temperatures (typically ≤ 200°C) and is suitable for treating medium- and high-temperature exhaust gases (such as those generated during drying and smelting processes), outperforming plastics such as PVC and PP.
- Corrosion Resistance: It has good resistance to neutral, slightly acidic, and slightly alkaline exhaust gases, as well as some organic solvent exhaust gases, and can be used in corrosive environments in industries such as the chemical industry, food processing, and pharmaceuticals.
- Strength and Stability: The material is highly strong, impact-resistant, and aging-resistant, making it suitable for outdoor applications and complex working conditions such as those involving humid and dusty conditions. 2. Service Life:
- Due to 304 stainless steel's excellent corrosion and aging resistance, with proper maintenance (such as regular cleaning and anti-corrosion treatment), its service life typically reaches 10-15 years, significantly longer than plastic spray towers, making it suitable for industrial applications requiring long-term, stable operation.
3. Limitations:
- Its tolerance to highly corrosive exhaust gases (such as high concentrations of chloride ions, strong acids, and alkalis) is limited, requiring evaluation based on exhaust gas composition. It is more expensive than plastic materials and is more suitable for applications requiring high equipment life and stability.

304 stainless steel spray towers are suitable for industrial environments requiring long-term operation, high exhaust gas temperatures, or a certain degree of corrosiveness, such as metal processing, food baking, and pharmaceutical manufacturing.
