Technical Deep Dive: Packing, Spray, and Mist Elimination—The Three Core Components of a Horizontal Scrubber

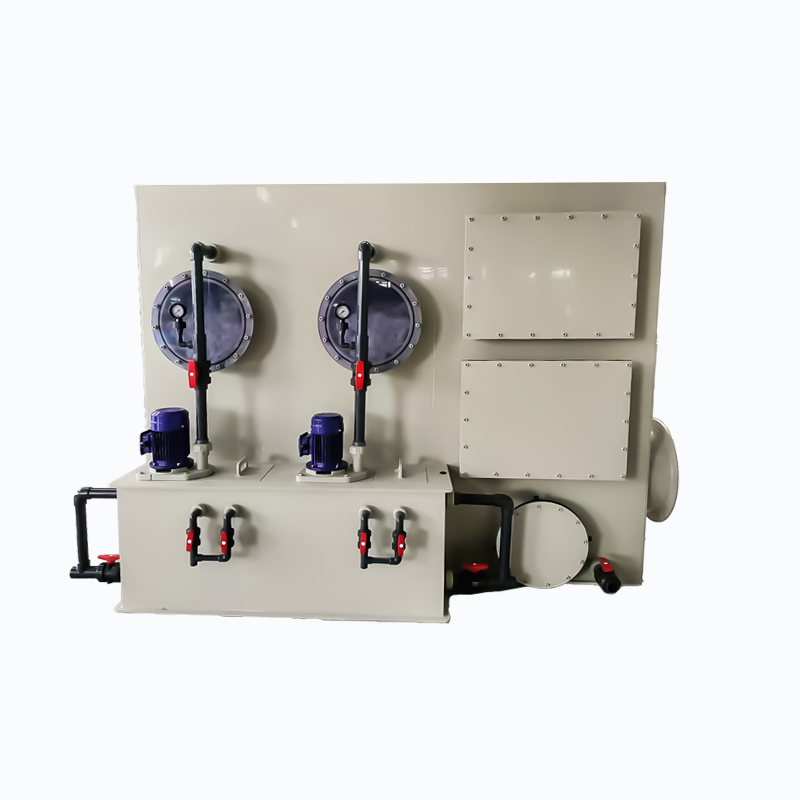

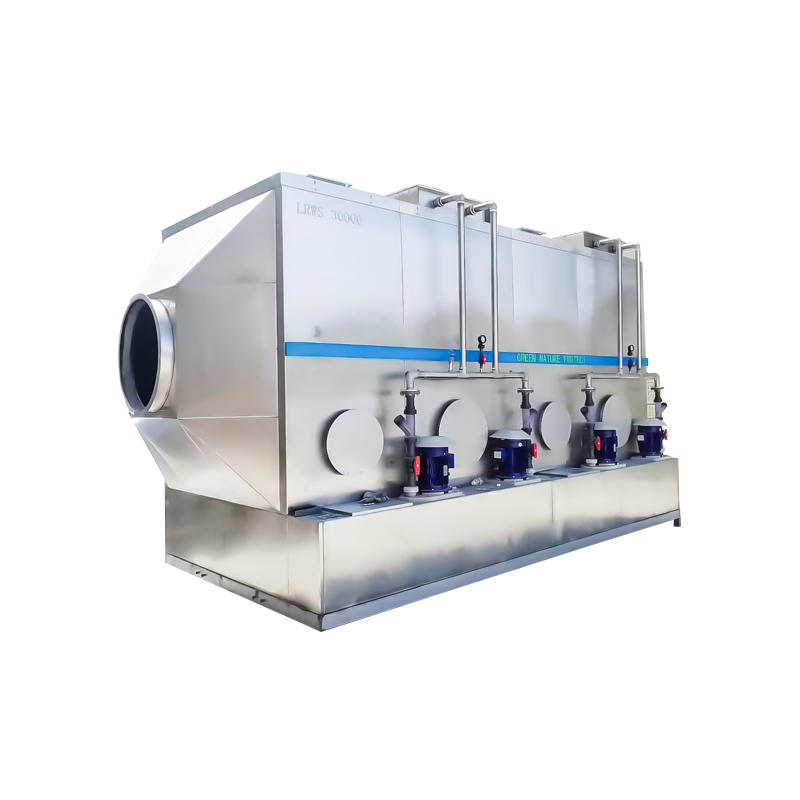

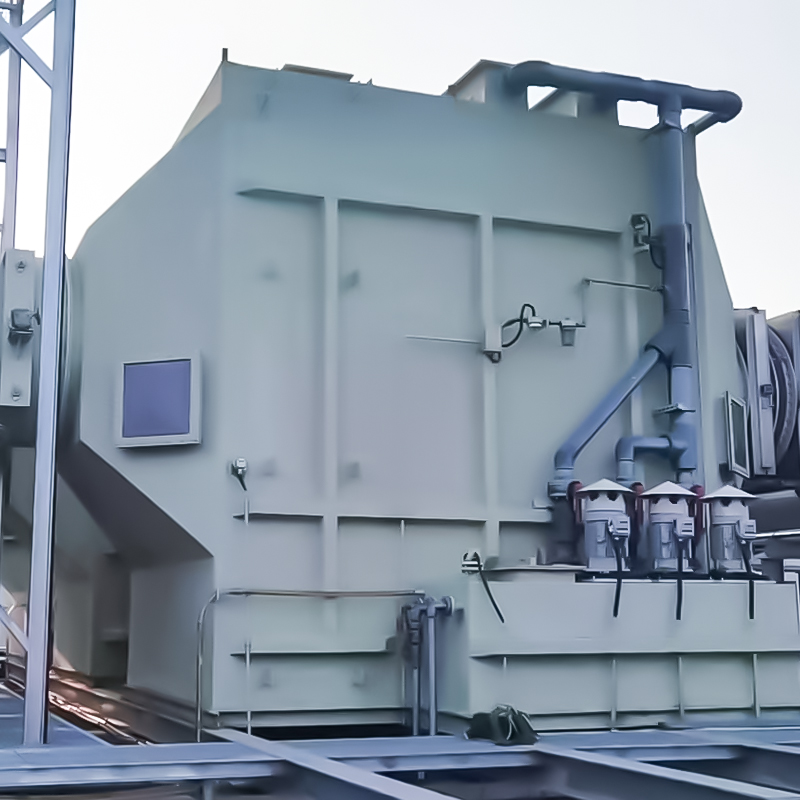

When evaluating an industrial air pollution control system, the true performance of a Horizontal scrubber is not determined by its exterior, but by the synergy of its internal components. While the overall system is critical, three elements stand out as the heart of its operation: the packing, the spray system, and the mist eliminator. These components work in concert to achieve maximum contaminant removal, operational efficiency, and long-term reliability. Understanding the technology behind each part is essential for any engineer, project manager, or business owner looking to invest in a high-performance wet scrubber solution. This knowledge transforms the selection process from a simple price comparison to a strategic evaluation of long-term value and compliance assurance.

• The Importance of Component Synergy - The spray system initiates contact by creating a vast surface area of liquid droplets. The packing amplifies this contact, forcing the gas and liquid to interact repeatedly. Finally, the mist eliminator ensures the clean gas released is free of entrained liquid droplets, completing the purification cycle. A weakness in any one of these three areas will compromise the entire system's efficiency.
• Beyond Basic Functionality - Advanced engineering goes beyond simply including these components. It involves optimizing their design, material, and configuration for specific industrial applications. For instance, the choice of packing material can drastically affect corrosion resistance, while the design of the spray nozzle directly influences energy consumption and droplet size distribution.
• Foundation for Innovation - For a technology-driven company, continuous research and development into these core components are paramount. Innovations like high-efficiency structured packing, low-pressure-drop nozzles, and multi-stage mist eliminators are what separate standard equipment from state-of-the-art systems capable of meeting the most stringent environmental regulations.

1. The Packing: The Heart of Gas-Liquid Mass Transfer

Packing material is the unsung hero of a horizontal wet scrubber. It provides the extensive surface area necessary for the contaminated gas and the scrubbing liquid to interact, facilitating the mass transfer of pollutants from the gas phase to the liquid phase. The effectiveness of this process is dictated by several key parameters.

Key Parameters of Scrubber Packing

2. The Spray System: Engineering Optimal Contact

The spray system is responsible for distributing the scrubbing liquid evenly throughout the packing. The quality of this distribution directly impacts the efficiency of the mass transfer process. A poorly designed spray system can lead to channeling, where gas bypasses the liquid, and dry spots, reducing overall performance.

• Nozzle Technology - The type of nozzle is crucial. Full-cone nozzles provide wide coverage, while hollow-cone nozzles create finer droplets for better gas interaction. Spiral nozzles offer a good balance of coverage and droplet size. The choice depends on the specific application and required liquid-to-gas ratio.
• Droplet Size Distribution - Smaller droplets create a larger total surface area for absorption but are more susceptible to being carried out of the scrubber. An optimal droplet size balances high efficiency with effective mist elimination downstream.
• Pump Performance and Redundancy - A reliable circulation pump is needed to provide the required pressure and flow to the nozzles. For critical applications, a backup pump ensures system uptime and continuous compliance.

3. The Mist Eliminator: Guaranteeing a Clean Exhaust

After the gas has been scrubbed, it passes through a mist eliminator (or demister). This component is designed to capture the tiny droplets of scrubbing liquid that are entrained in the gas stream. Preventing this "liquid carryover" is essential for several reasons: it prevents the loss of expensive scrubbing chemicals, protects downstream equipment (like fans and stacks) from corrosion, and ensures a visible, clean plume.

• Types of Mist Eliminators - The most common type is a vane-style or chevron mist eliminator, which forces the gas to change direction, causing the heavier droplets to impinge on the vanes and drain away. Mesh-style eliminators are also used for finer droplets but can be more prone to clogging.
• Efficiency and Pressure Drop - A high-efficiency mist eliminator will remove over 99% of droplets greater than 5-10 microns. However, this efficiency comes at the cost of a pressure drop. The design must balance the need for high removal efficiency with the desire to minimize energy consumption.
• Wash Systems - To prevent fouling and buildup of solids on the eliminator surfaces, many high-performance systems include a periodic wash system that sprays clean water to keep the eliminator clean and functioning at peak efficiency.

Integrating Expertise for Superior Performance

The optimization of these three core components is not a matter of selecting parts from a catalog. It requires deep process knowledge, computational fluid dynamics (CFD) modeling, and extensive R&D. Companies like Hangzhou Lvran Environmental Protection Group Co., Ltd., a national high-tech enterprise with over 30 utility model patents, leverage their dedicated R&D centers and collaborations with universities to innovate in these exact areas. Their expertise ensures that each Horizontal scrubber is not just a collection of parts, but a finely tuned system engineered for maximum performance, reliability, and compliance, providing clients with a truly valuable and effective solution.

FAQ

What is the main difference between a Horizontal scrubber and a Vertical scrububber?

The primary difference lies in their physical layout and space requirements. A Horizontal scrubber is designed with its main axis horizontal, making it longer and wider but shorter in height. This makes it ideal for facilities with low ceiling heights or where space constraints prevent the installation of a tall vertical tower. A vertical scrubber, where gas flows upward against a downward-falling liquid spray, has a smaller footprint but requires significant vertical clearance. The choice often depends on the available plant space and specific process requirements.

How do I choose the right packing material for my Horizontal Wet Scrubber?

Choosing the right packing material is critical for the longevity and effectiveness of your scrubber. The decision is primarily driven by the chemical composition, temperature, and pH of both the gas stream and the scrubbing liquid. For highly corrosive environments, such as those with strong acids (like HCl or H₂SO₄) or strong bases (like NaOH), engineering plastics like Polypropylene (PP) or PVDF are excellent choices due to their superior chemical resistance. For less aggressive applications or higher temperatures, materials like stainless steel or ceramics might be considered. Always consult with the equipment manufacturer to select a material that is compatible with your specific process.

What is the typical lifespan of a Horizontal Wet Scrubber system?

The lifespan of a Horizontal Wet Scrubber system can vary greatly depending on several factors, but a well-maintained system can last for 20 years or more. The key determinants of its lifespan include the corrosiveness of the chemicals being handled, the quality of the initial construction (e.g., material thickness, welding quality), and the consistency of its maintenance program. Regularly inspecting and replacing components like nozzles, packing, and the corrosion-resistant lining of the vessel is essential to prevent premature failure and ensure the system operates efficiently for its entire design life.

Can a Horizontal Scrubber handle both particulate matter and gaseous pollutants simultaneously?

Yes, a Horizontal scrubber is very effective at removing both particulate matter (like dust, smoke, and fumes) and gaseous pollutants (like acid gases) in a single unit. The process works through several mechanisms. Particles are removed primarily by inertial impaction as the gas stream is forced to change direction around the liquid droplets and packing. Gaseous pollutants are removed through absorption and chemical reaction as they dissolve into the scrubbing liquid. This dual-function capability makes wet scrubbers a versatile and comprehensive solution for many complex industrial air pollution control applications.

What are the biggest operating costs associated with a Horizontal scrubber?

The main operating costs (OPEX) for a Horizontal scrubber typically fall into three categories: energy, chemical consumption, and waste disposal. Energy is the largest cost, primarily from the electricity required to run the main fan (to overcome pressure drop) and the recirculation pump. Chemical consumption is the second major cost, involving the purchase of reagents (e.g., caustic soda, sulfuric acid) to maintain the effective pH of the scrubbing liquid. Finally, the cost associated with disposing of or treating the resulting wastewater stream can also be significant. Optimizing the design to minimize pressure drop and maximize chemical reaction efficiency is key to reducing these long-term costs.
