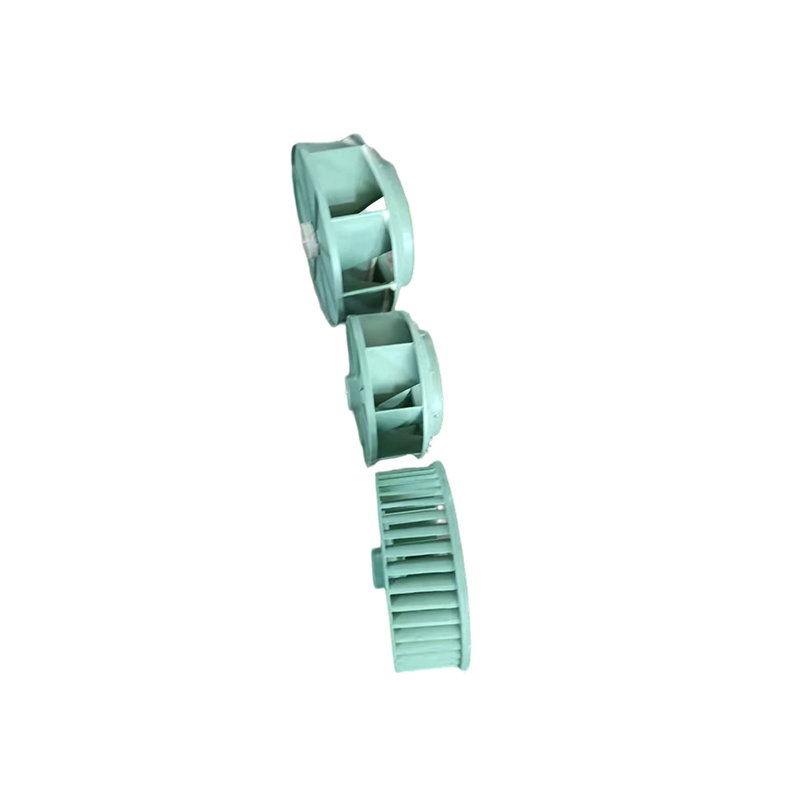

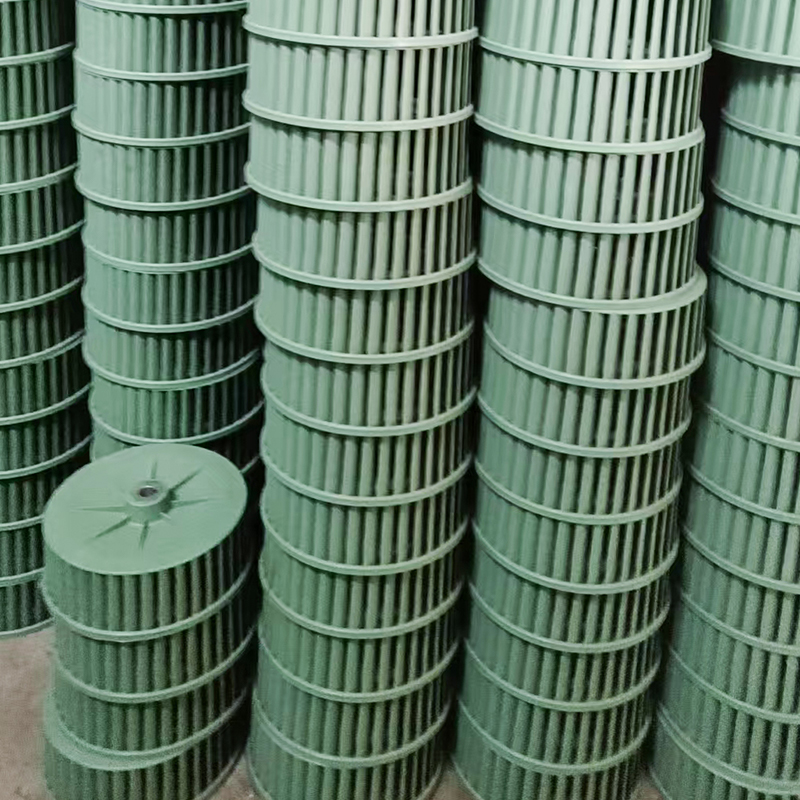

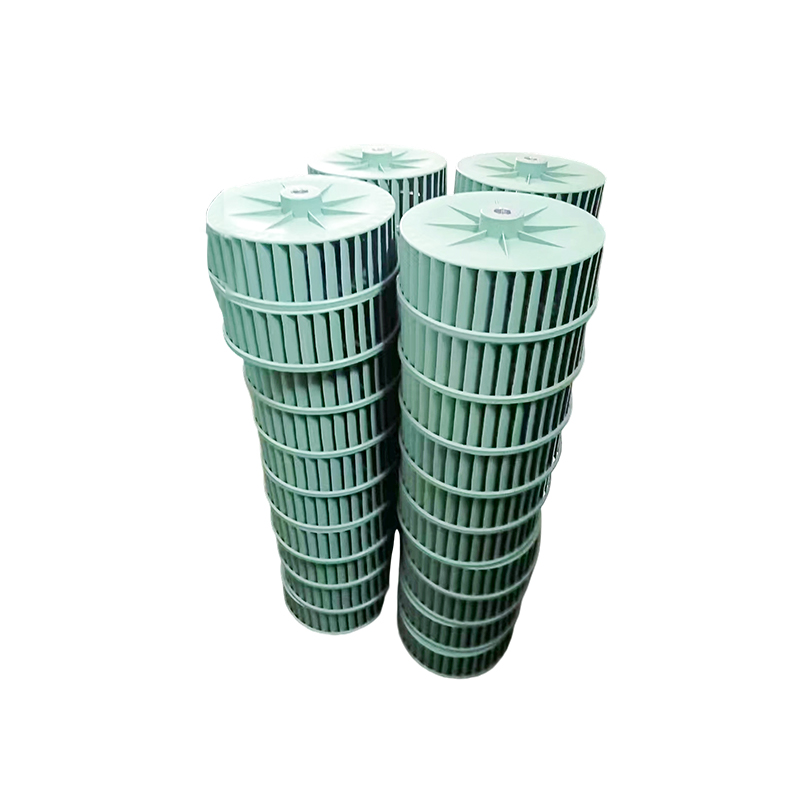

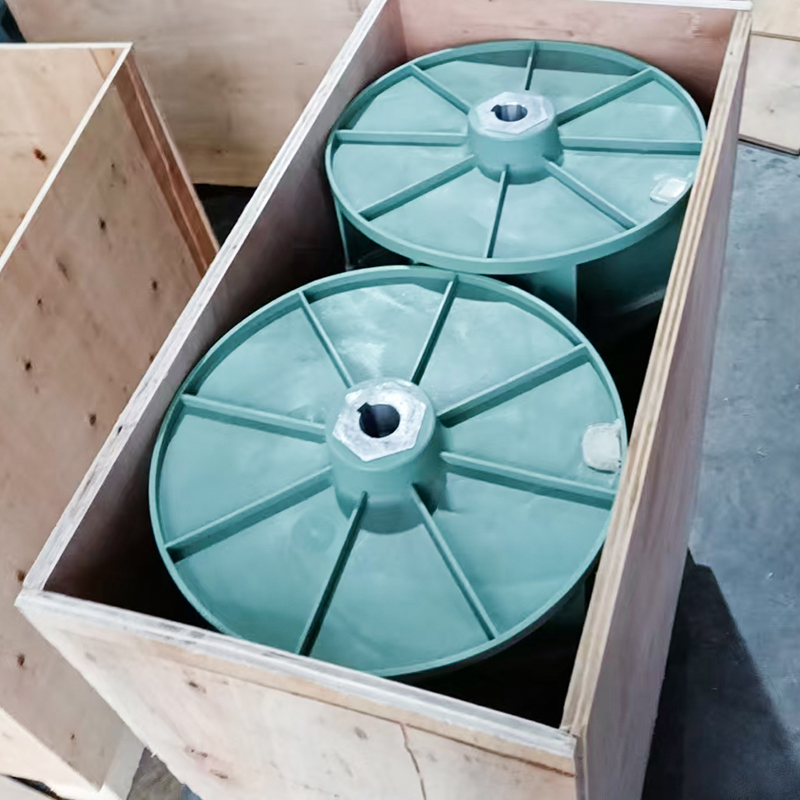

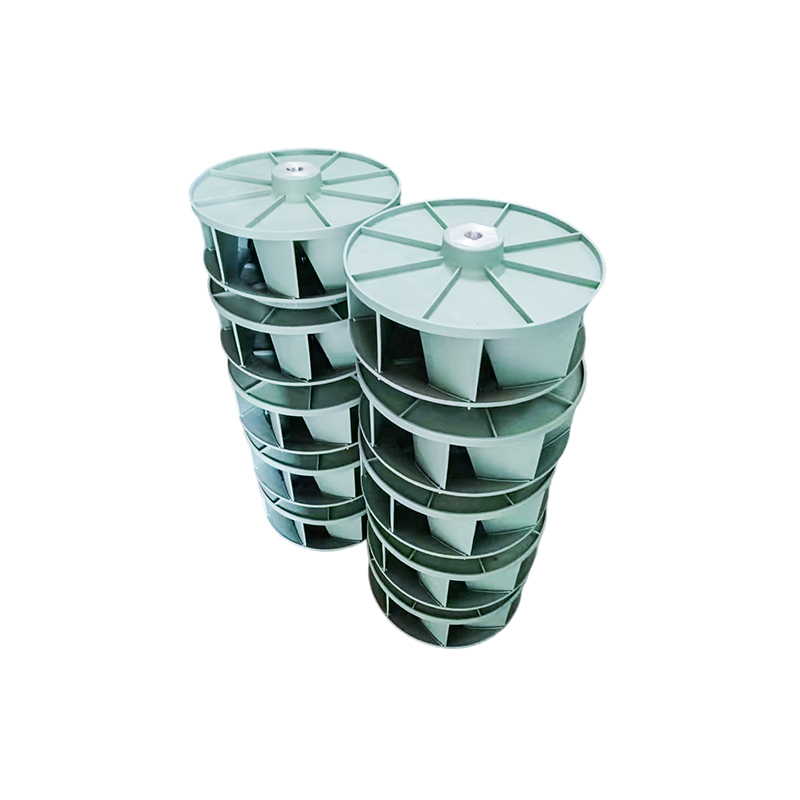

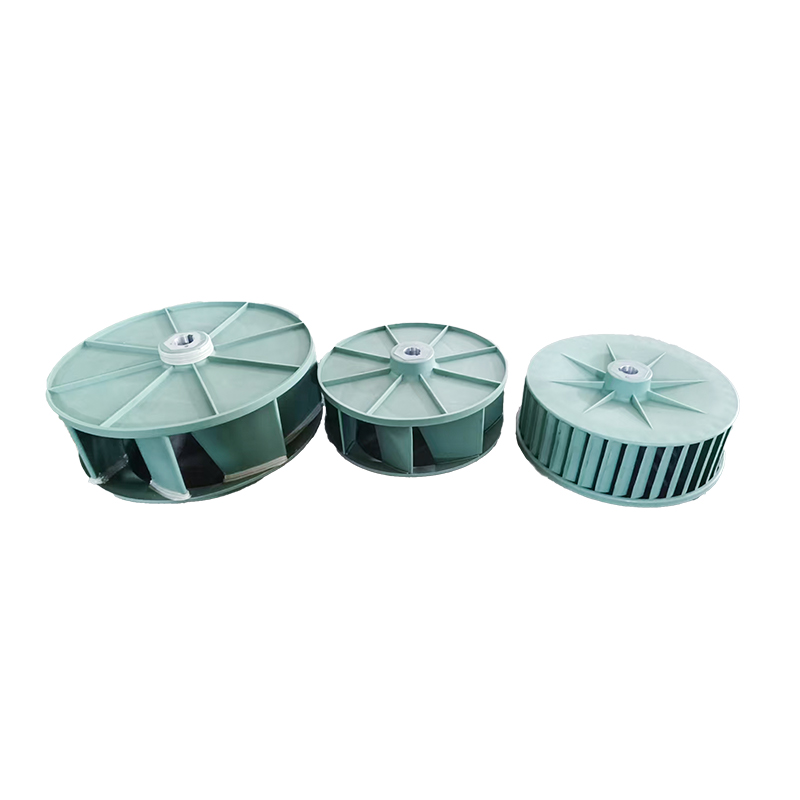

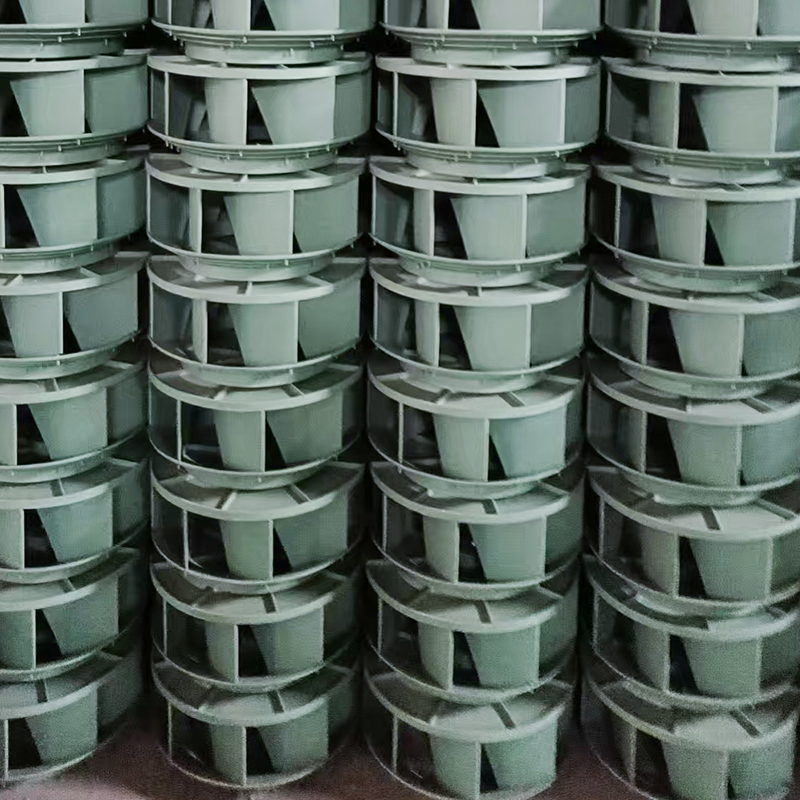

The PP centrifugal impeller is the core power component of exhaust gas treatment fans. Made of polypropylene (PP) by injection molding or compression molding, it is suitable for corrosive exhaust gas conveying fans in the chemical, electroplating, electronics, and pharmaceutical industries. It can be used with PP ducts, PP water tanks, and other equipment.
It offers four key advantages: First, it is highly corrosion-resistant. It is inert to acids, alkalis, salt spray, and organic solvents, and can withstand long-term corrosion from exhaust gases containing hydrochloric and sulfuric acids, resolving the rust and imbalance issues of traditional metal impellers. Second, it is lightweight and energy-efficient, with a density only one-fifth that of metal and low rotational inertia, which reduces the load on the fan motor and energy consumption. Third, it offers stable operation and low noise. The material's excellent toughness reduces vibration during operation and absorbs some airflow noise, resulting in a noise level 3-5 decibels lower than that of metal impellers. Fourth, it is easy to clean and age-resistant, with a smooth surface that resists fouling and is easy to clean. It is also resistant to aging and deformation at temperatures between -10°C and 80°C, and has a service life of 5-8 years.
PP Centrifugal Impeller Parameter Table
| Model | A/mm | B/mm | C/mm | D/mm | H/mm | φ/mm | Rotational speed/min | Right-handed | Left-handed | |
| 2# | 135 | 60 | 200 | 15 | 85 | 11 | 2850 | There is a left-handed | ||
| 2.5# | 160 | 80 | 250 | 15 | 115 | 14 | 2850 | |||
| 2.8# | 190 | 100 | 280 | 20 | 137 | 19 | 24 | 2850 | ||
| 3.2# | 210 | 105 | 320 | 18-20 | 150 | 19 | 24 | 2850 | ||
| 3.6# | 242 | 120 | 360 | 20 | 170 | 24 | 28 | 2850 | ||
| 4# | 273 | 130 | 400 | 18 | 190 | 19 | 24 | 1450 | ||
| 4.5# | 315 | 150 | 450 | 35 | 222 | 24 | 1450 | |||
| 5# | 345 | 160 | 500 | 40 | 240 | 24 | 28 | 1450 | ||
| 6# | 442 | 185 | 600 | 40 | 275 | 28 | 1450 | |||
| 442 | 185 | 600 | 40 | 275 | 38 | 1450 | ||||
| 7# | 515 | 175-200 | 700 | 35 | 280-305 | 38 | 1450 | There is a left-handed | ||
| 515 | 175-200 | 700 | 35 | 280-305 | 42 | 1450 | ||||
| 8# | 550 | 240 | 800 | 40 | 280 | 38 | 1250 | |||
| 550 | 240 | 800 | 40 | 280 | 50 | 1250 | ||||
| 10# | 690 | 290 | 100 | 60 | 330 | 50 | 960 | |||
| FDE250 | 19 | 1450 | ||||||||
| FDE300 | 24 | 1450 | ||||||||
Products provided by famous enterprises are deeply trusted by users.
Service unit customers
National Engineering Cases
Hangzhou Lvran Environmental Protection Group Co., Ltd. is a comprehensive waste gas treatment system engineering service provider and equipment manufacturer, integrating R&D, technical services, design, production, engineering installation, and after-sales service.
We are China PP centrifugal impeller Suppliers and Wholesale PP centrifugal impeller Exporter, Company. The Group is a national high-tech enterprise, a Zhejiang Province science and technology enterprise, a regional R&D center, and an AAA-rated credit unit. It holds over 30 utility model patents, numerous invention patents, and software copyrights. The Group has long-standing technical R&D collaborations with domestic universities and institutions, including the "Environmental Innovation R&D Center" established with Anhui University of Science and Technology and the "Plasma Energy and Environmental New Technology R&D Center" jointly developed with Zhejiang Sci-Tech University. The Group has established its own R&D and production base for in-depth technical collaboration. The Group possesses core VOC gas treatment technology, holds a Level 2 general contracting qualification for municipal public works construction, a safety production license, a Class B special design qualification for environmental pollution control in Zhejiang Province, unclassified labor service qualifications, and specialized contracting for special projects. The Group is certified to ISO9001 for international quality, ISO14001 for environmental management, and ISO45001 for occupational health and safety.
